Newton’s Interpolation in MATLAB (Forward and Backward)

4
3798

Named after Sir Isaac Newton, Newton’s Interpolation is a popular polynomial interpolating technique of numerical analysis and mathematics. Here, the coefficients of polynomials are calculated by using divided difference, so this method of interpolation is also known as Newton’s divided difference interpolation polynomial. Newton polynomial interpolation consists of Newton’s forward difference formula and Newton’s backward difference formula.

In this tutorial, we’re going to write Matlab programs for Newton’s forward interpolation as well as Newton’s backward interpolation, going through the mathematical derivation of the interpolation technique in general. You can also check out our earlier tutorials where we discussed C programs for Newton’s forward interpolation and Newton’s divided difference.

Derivation of Newton’s Interpolation:

Let us consider a set of k+1 data points (x0, y0) , (x1, y1), (x2, y2), . … . .(xk, yk).

where, every xj is unique.

The given interpolation of polynomial in Newton’s form can be expressed in linear combination of Newton basis polynomial as follows:

Newton's Interpolation in MATLAB - Expression

Again, the Newton basis Polynomials can be defined as:

Newton's Interpolation Basis Polynomials

which is valid for j > 0 and n0(x) ≡ 1

Similarly, the coefficients are defined as:

aj := [y0, y1, y2, .. . . . . .yj]

where, [y0, y1, y2, .. . . . . .yj] is the notation of divided difference.

Now, Newton’s interpolation or polynomial can be expressed as:

N(x) = [y0] + [y0, y1] (x –x0) + . . . + [y0, . . .yk]( x – x0) ( x – x1) . . . ( x – xk-1)

This form of Newton’s polynomial can be simplified by arranging xo, x1, x2, … xk in consecutively equal space.

For simplicity, use the notation h = xi+1 – xi

where, i = 0, 1, . . . .k- 1 and x = x0 + sh

Again, the difference x – xi is written as ( s – i )h.

Finally, the above expression for Newton polynomial above becomes:

N(x) = [y0] + [ y0, y1]sh + . . . + [y0, y1, . . . .yk] s(s – 1) . . . (s – k +1) hk

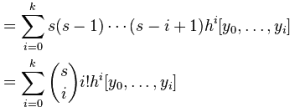

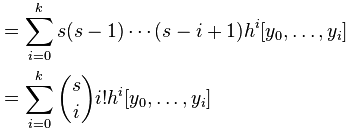

           Newton's Forward Interpolation in MATLAB - Formula

which is called Newton’s forward difference formula.

If the nodes are recorded from backward as xk, xk-1, . . . , x0

The Newton’s Polynomial can be expresses as:

N(x) = [yk] + [yk, yk-1] (x – xk) + . . . + [yk, yk-1, . . . y0] (x – xk) ( x – xk-1) . . . (x – x1)

If the xk, xk-1, . . .  . x0 are equally spaced and x = xk + sh and xi = xk– ( k –i)h for i = 0, 1, . . k

Now, Newton’s polynomial becomes:

N(x) = [yk] + [ yk, yk-1]sh + . . . + [ yk, yk-1, . . . .y0]s(s+1) . . . (s+ k – 1) hk

           Newton's Backward Interpolation in MATLAB - Formula

which is called Newton’s Backward Difference Formula.

Newton’s Interpolation in MATLAB:

Here are two different MATLAB codes for Newton’s forward as well as backward interpolation, written on the basis of aforementioned derivation cum formula.

Forward Interpolation using MATLAB:

The above source code for Newton’s Interpolation using forward difference formula doesn’t need any input value. All the input values required for the interpolation are embedded within the source code. The values of x and y used in above source code are 0 2 4 7 10 12 and 20 20 12 7 6 6 respectively. The sample output of the program is given below:

Newton's Forward Interpolation in MATLAB - Output

Backward Interpolation using MATLAB:

The above source code in MATLAB for Newton’s interpolation by using backward difference formula is to solve the following data:

X: 0 8 16 24 32 40

Y :14.621 11.843 9.870 8.418 7.305 6.413

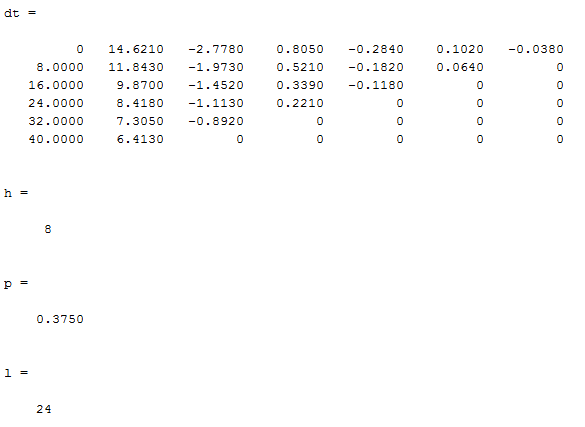

Since, all the input data are already defined in the source code, the user doesn’t need to input any value to the program while running. The sample output of the above Matlab code is given below:

Newton's Backward Interpolation in MATLAB - Output

If you have any questions regarding the above two Newton’s interpolation techniques, their derivation or MATLAB programs, bring them up from the comments section. You can find more Numerical Methods tutorial using MATLAB here.

4 COMMENTS

    • clc
      clear all
      x=[1901 1911 1921 1931 1941 1951];
      y=[12 15 20 27 39 52];
      u=[-3 -2 -1 0 1 2];
      s=input(‘please concidered the origin=’);
      m=length(y);
      for i=1:m
      d(i,1)=x(i);
      d(i,2)=u(i);
      d(i,3)=y(i);
      end
      n=m+2;
      l=m-1;
      for j=4:n
      for i=1:l
      d(i,j)=d(i+1,j-1)-d(i,j-1);
      end
      l=l-1;
      end
      disp(d)
      z=input(‘please input the interpolated value=’)
      h=x(2)-x(1);
      u=((z-s)/h);
      p1=d(4,3);
      p2=u*d(3,4);
      p3=(u*(u+1)/2)*d(3,5);
      p4=(((u+1)*u*(u-1))/6)*d(2,6);
      p5=(((u+2)*(u+1)*u*(u-1))/24)*d(2,7);
      p6=(((u+2)*(u+1)*u*(u-1)*(u-2))/120)*d(1,8);
      sum=p1+p2+p3+p4+p5+p6;
      fprintf(‘The required interpolated value is = %d\n’,sum)
      plot(x,y,’:r’,’LineWidth’,2.5)
      hold on
      plot(z,sum,’ok’,’LineWidth’,1.5)
      grid on
      legend(‘Graph of a given data’,’ Interpolated value’,2);
      xlabel(‘x-axis’,’FontSize’,12)
      ylabel(‘y-axis’,’FontSize’,12)
      hold off
